Analysis
Analysis
Below is our analysis of various components of our Crane.

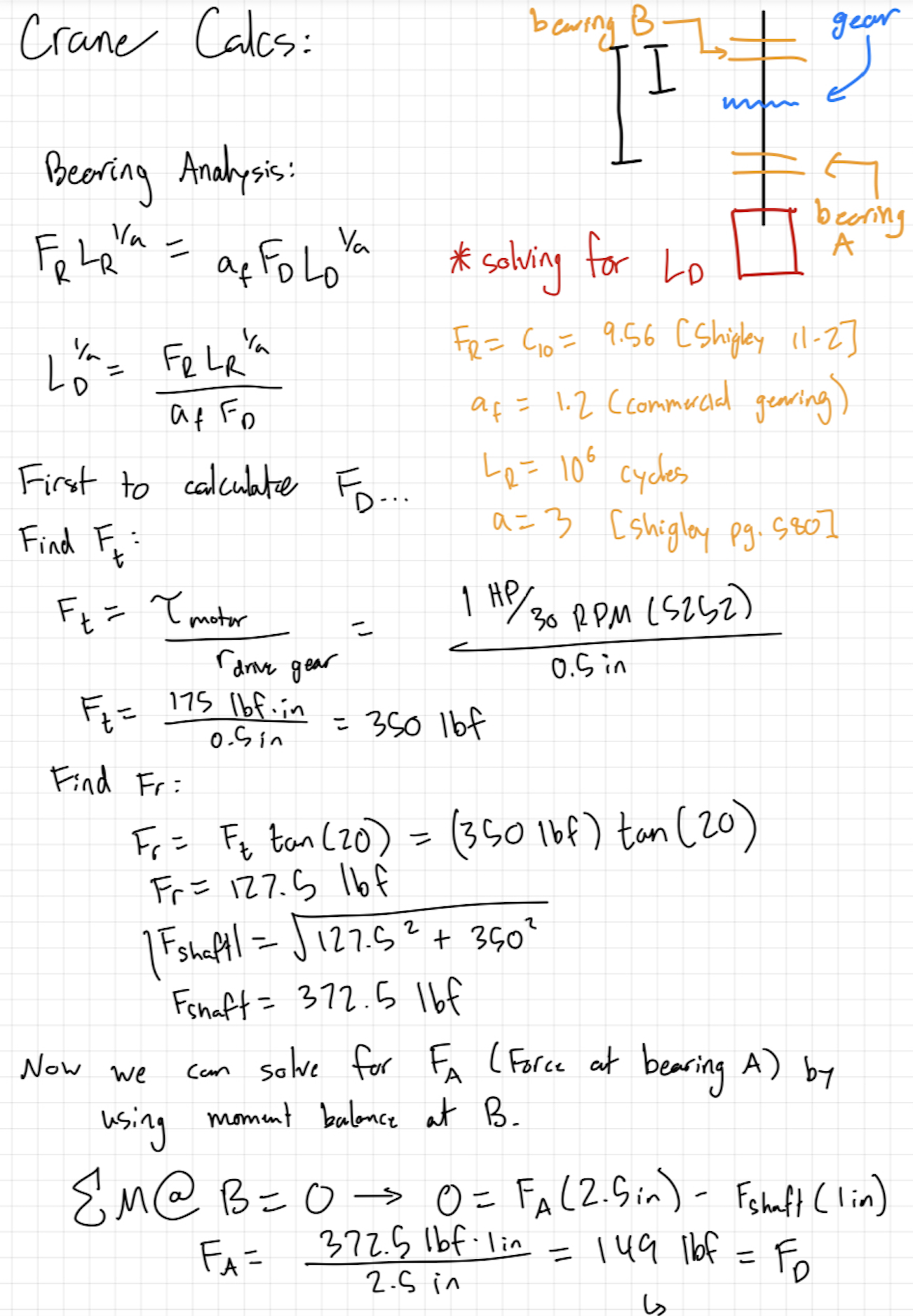

Gear Bearing Lifetime Analysis
Gear Bearing Lifetime Analysis

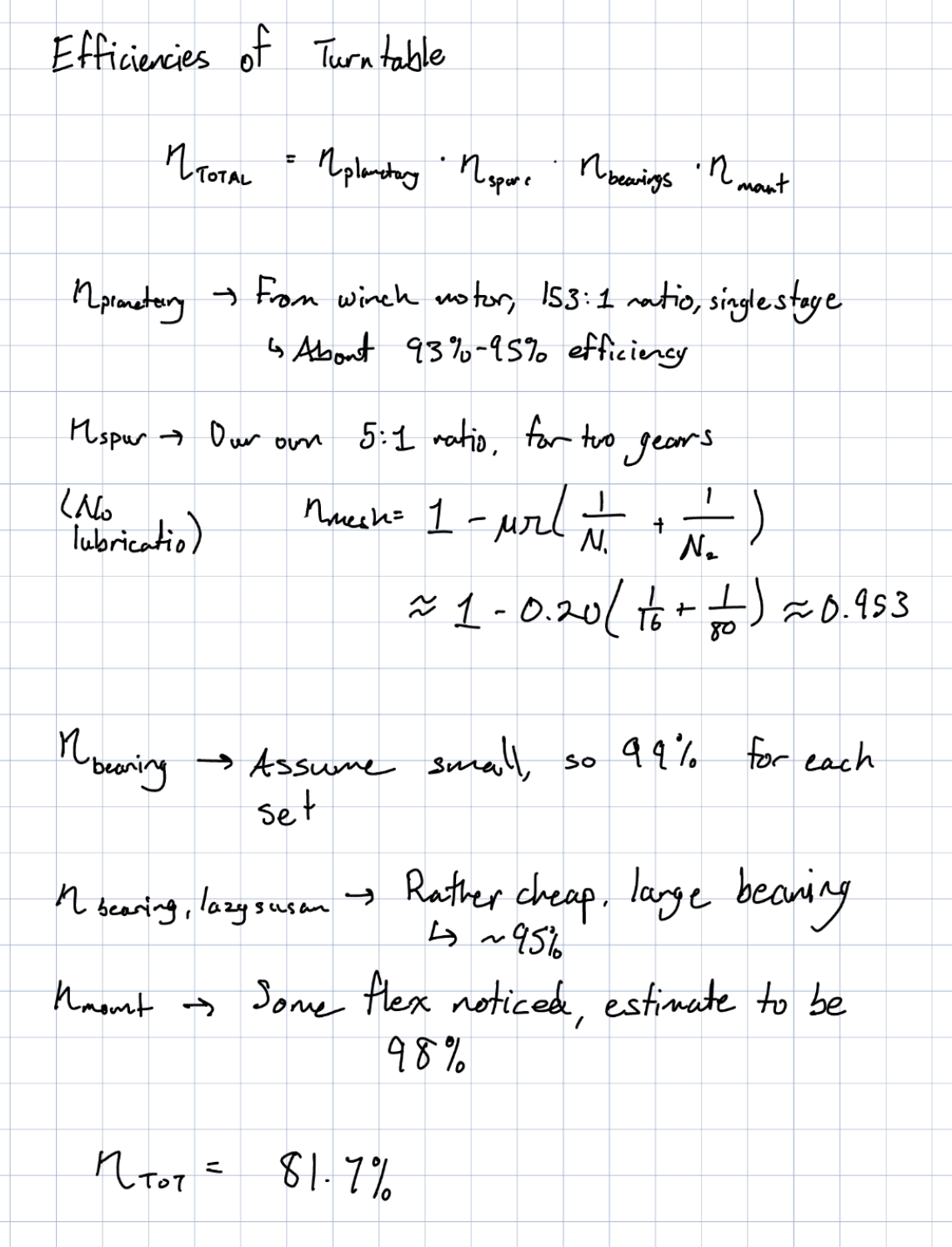

Turntable Efficiency

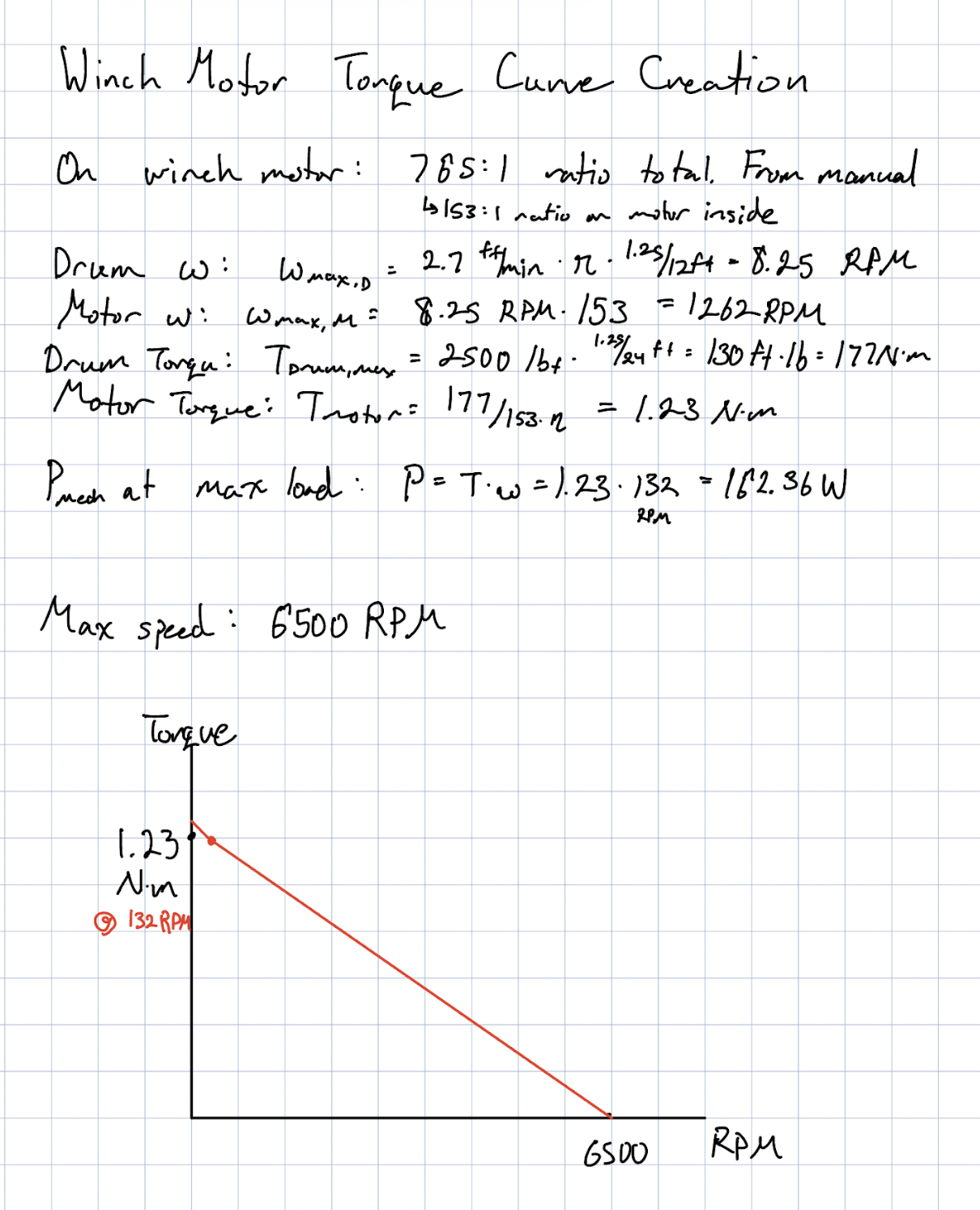

Winch Motor Torque Curve
