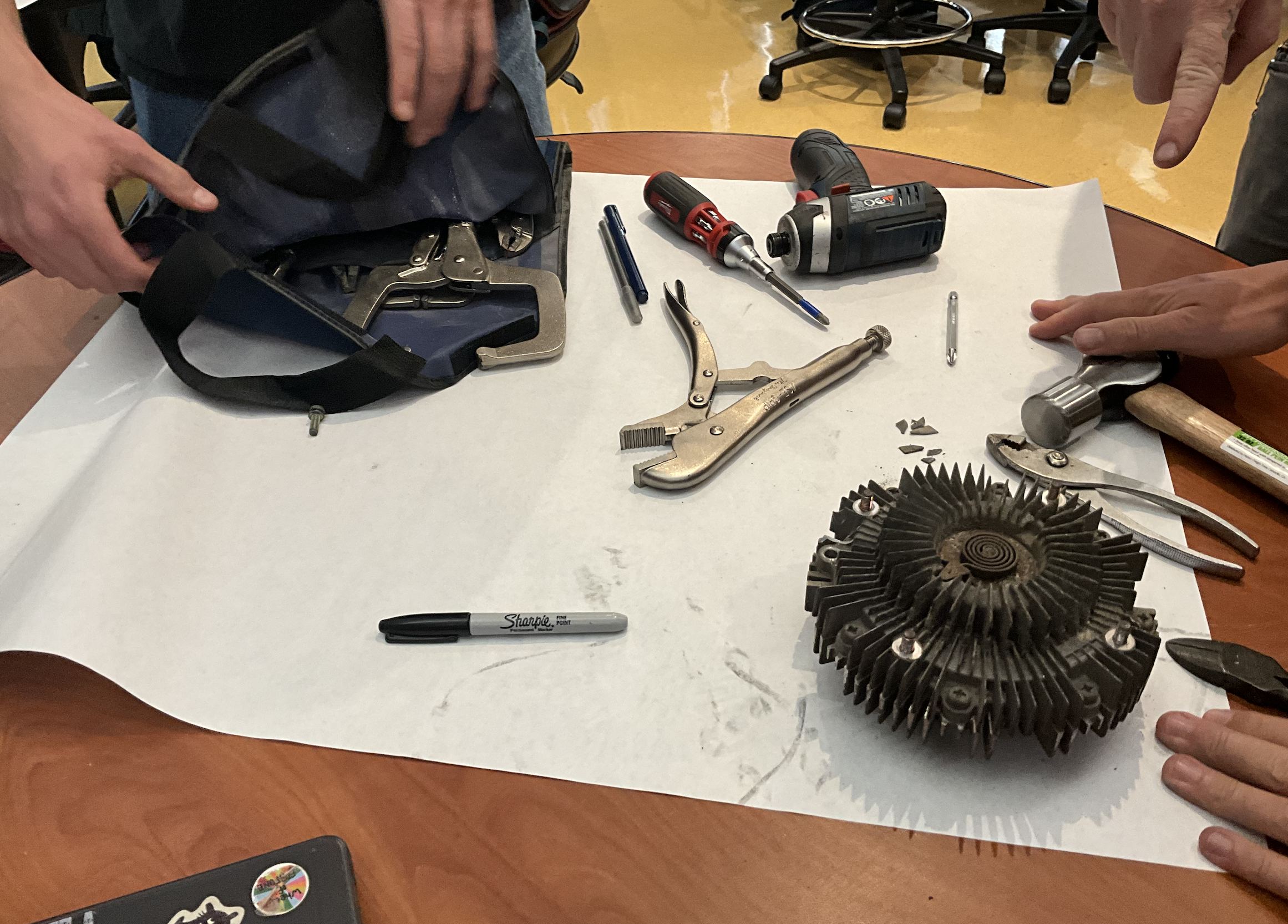

A part was chosen in teams of 4 to take apart different mechanical components and CAD them. This part was a car fan clutch which had a lot of fun symmetrical and mirroring geometries which gave the team a lot to work with.

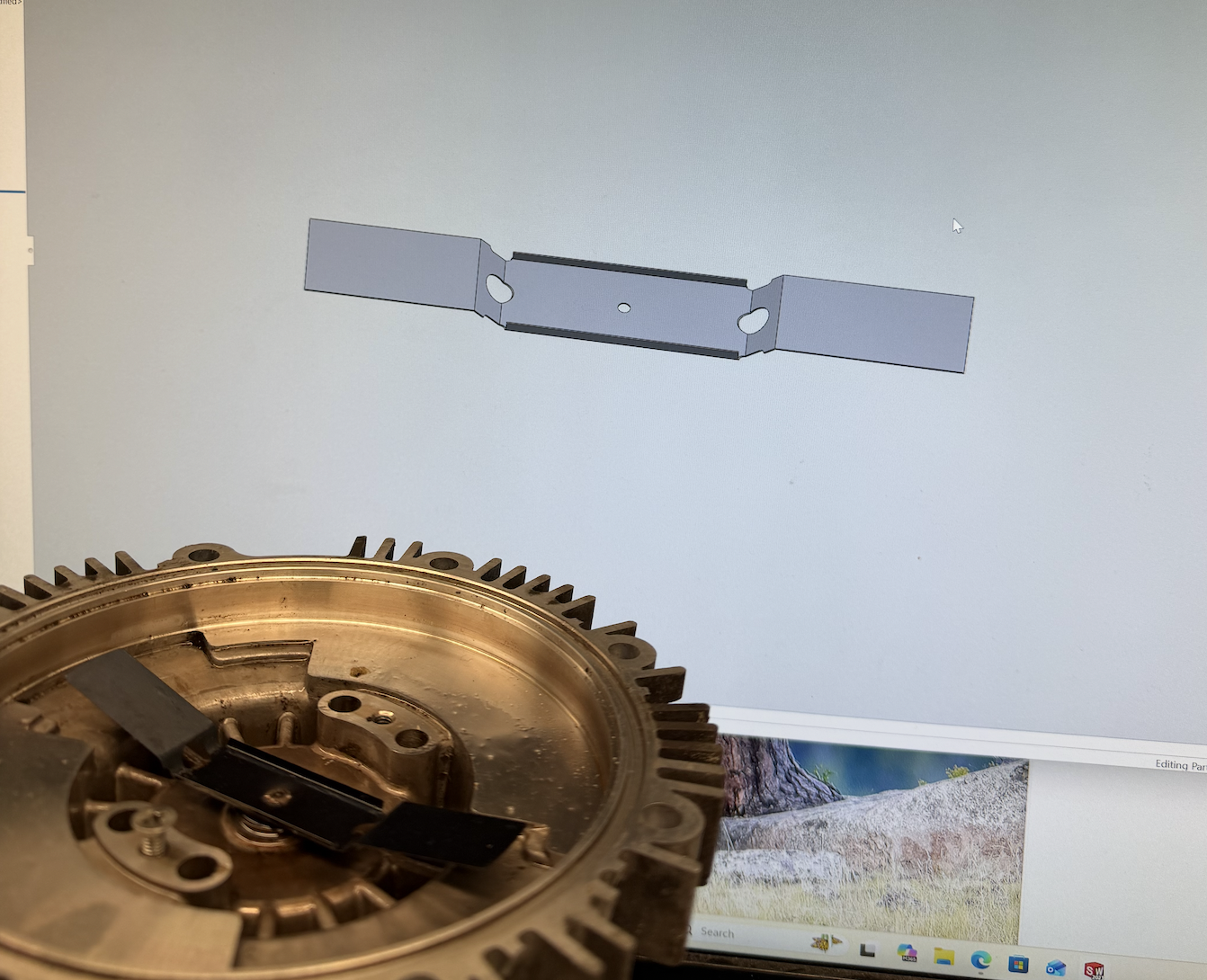

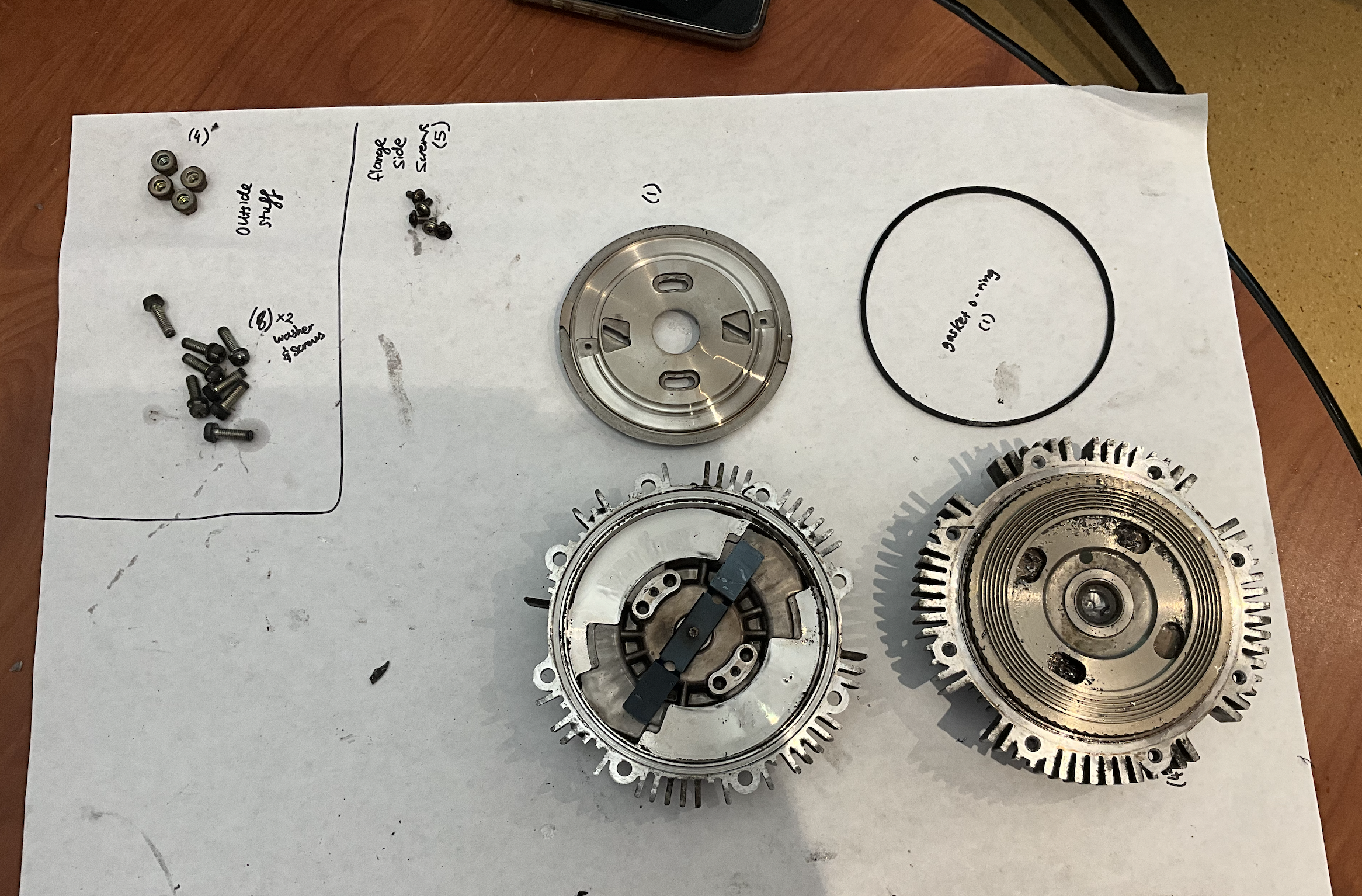

From there each layer was split between the team to reCAD only using measurement tools like calipers.

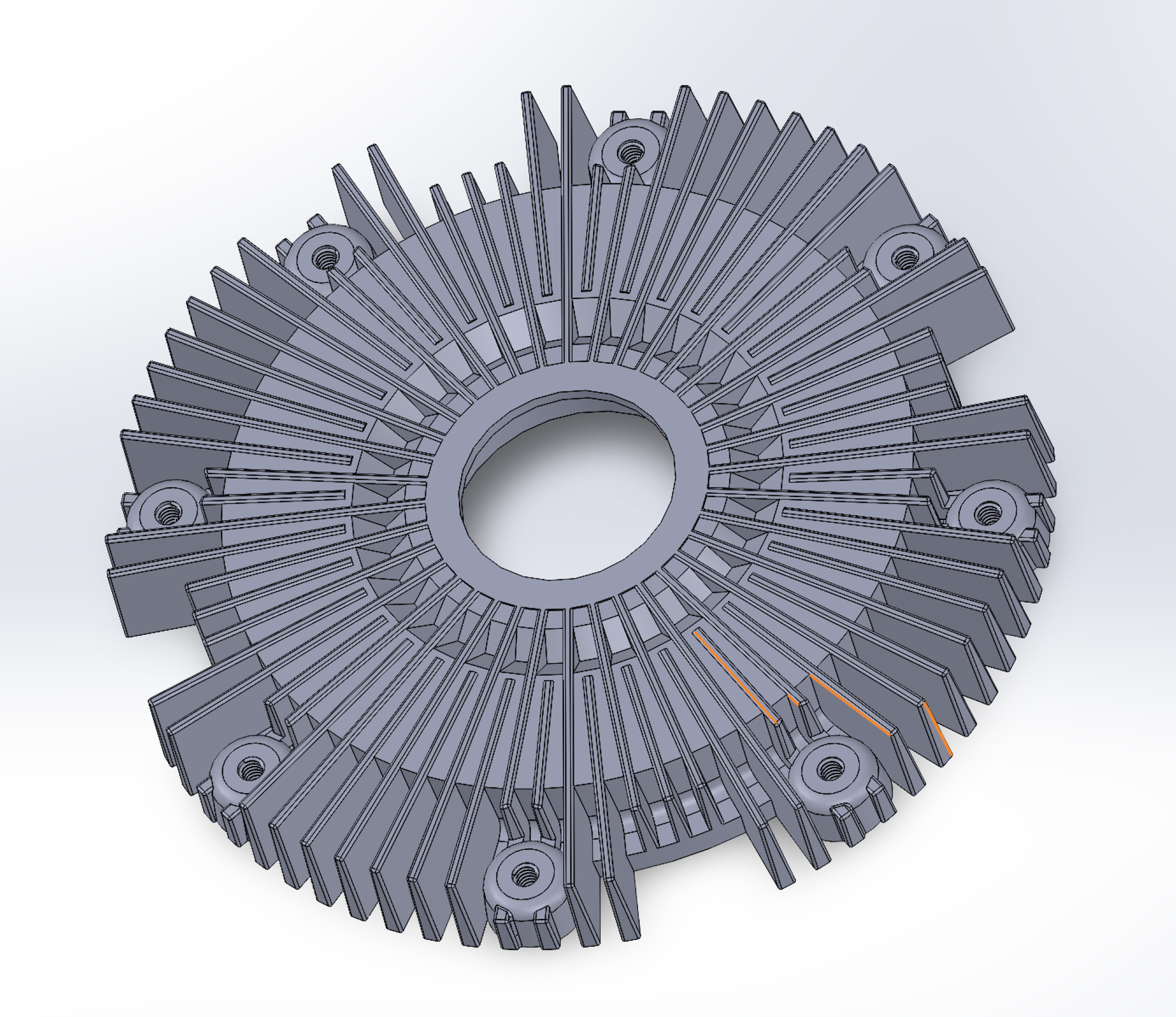

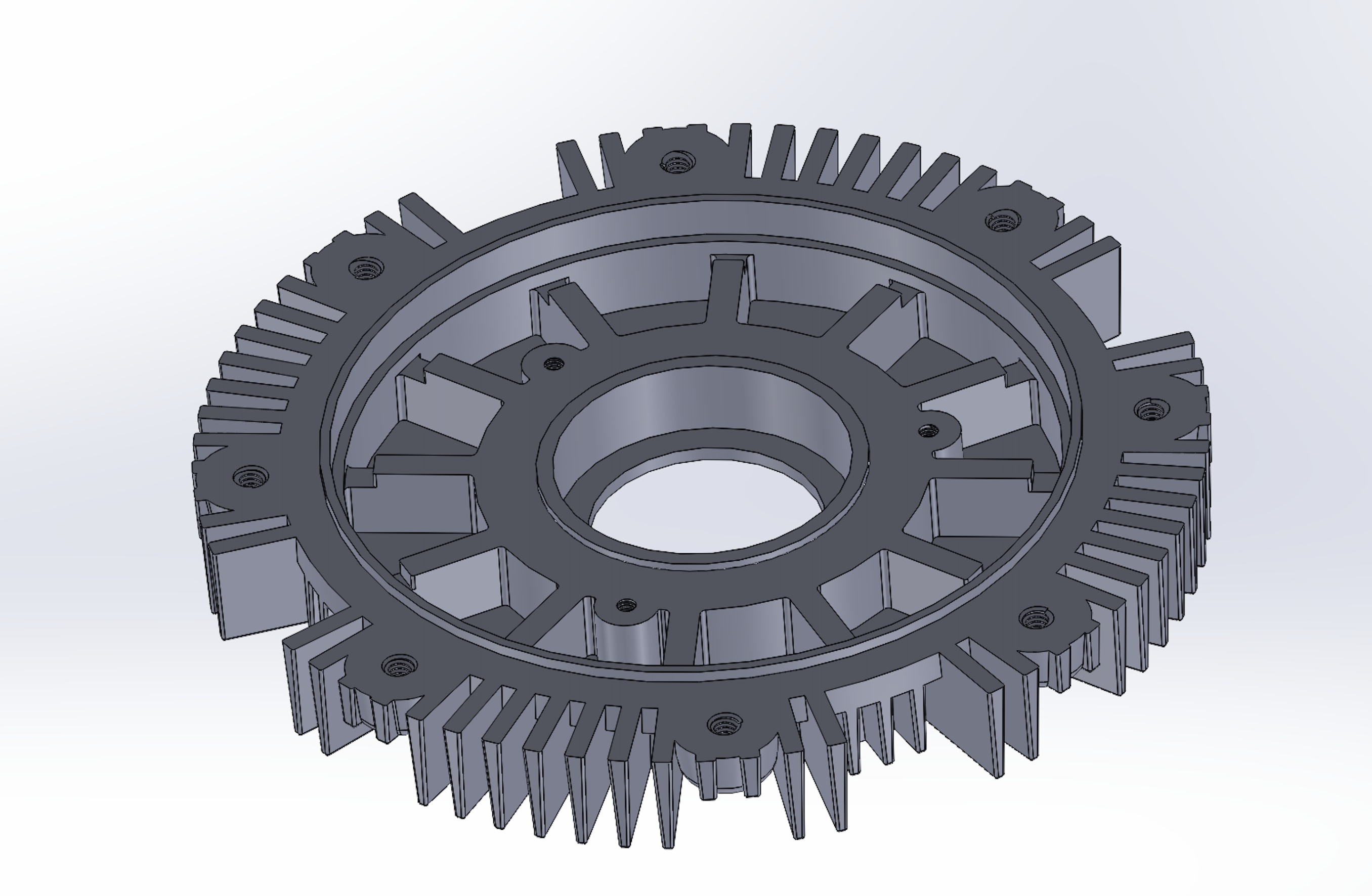

I 3D modeled the following pieces on SolidWorks while heavily using the Linear Pattern feature (as well as the standard Extrude and Draft).

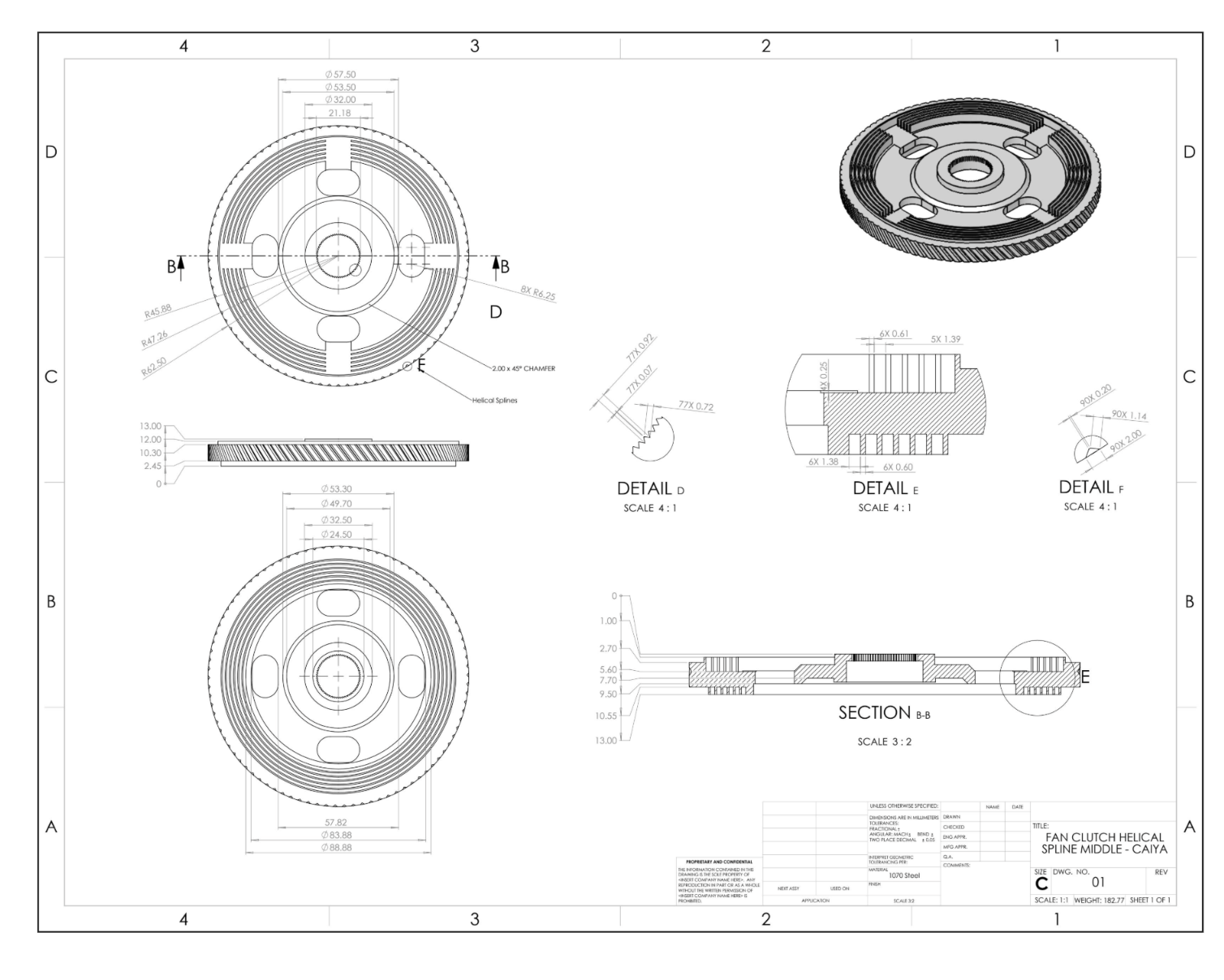

Additionally I made a drawing for documentation practice:
